Events

Events can be a useful part of designing a scenario, and can be used to simulate incidents, incident responses, or even different types of fixed control. TUD-SUMO includes the logic to schedule events and undo the changes made, for example, events can be used to reduce the speed limit of a road between specific times. Events designed to simulate incidents can also be created dynamically, with control over where the incident occurs and for how long. Events are also integrated into the plotting functions of TUD-SUMO, and can be displayed automatically on graphs if desired.

Scheduled Events

Scheduled events are initialised through a event parameters dictionary, and added to the simulation through the Simulation.add_events() function as below. This dictionary can either be in code or as a '.json' or '.pkl' file, and can be included in the object parameters dictionary under 'events' when calling Simulation.load_objects(). These are shown below.

All events require a 'start_time'/'start_step' and 'end_time'/'end_step' which represent when the event will occur, either in steps or simulation time. Otherwise, there are two types of effects that can be used; 'edges' or 'vehicles'.

1. 'edges':
   • Including edge effects will change edge states when the event is active. Both edges and lanes can be included.
   • Any variable defined in the data keys for the Simulation.set_edge_vals() function can be used. The new edge/lane settings should be included under 'actions' in the edge effects dictionary. The edge/lane IDs should be included under 'edge_ids'.
   • When an event is first scheduled, the base values for all edges/lanes are stored. When the event occurs, all changes defined in the parameters dictionary are made. Once the event is over, all changes are undone.
2. 'vehicles':
   • Including vehicle effects will aim to change vehicle states whilst the effect is active, or changes can be made indefinitely.
   • Any variable defined in the data keys for the Simulation.set_vehicle_vals() function can be used. The new vehicle settings should be included under 'actions' in the vehicle effects dictionary.
   • Vehicles can either be affected based on a list of vehicle IDs or based on location If 'vehicle_ids', only the specified vehicles will be affected. If 'location' is given, affected vehicles are randomly chosen based on where they are in the network. The locations list can, therefore, include edge IDs, lane IDs or detector IDs, meaning that vehicles that pass over a specific edge/lane/detector can be controlled during an event. It is required to provide either a 'vehicle_ids' or 'location' list.
   • If vehicles are being chosen randomly based on location, there are three other parameters that can be used; 'vehicle_limit', 'effect_probability' and 'effect_duration'. If a 'vehicle_limit' is given, new vehicles will no longer be effected once this threshold has been reached. If an 'effect_probability' is given, new vehicles will only be affected based on this probability. If 'effect_duration' is given, vehicles will only be affected for a certain amount of steps, otherwise, they are permanently affected.
   • The 'highlight' parameter can be used to colour affected vehicles in the GUI.
   • If 'remove_affected_vehicles' is given and when set to True, affected vehicles are removed from the simulation once the effect is over.
   • Both 'speed_safety_checks' and 'lc_safety_checks' are boolean parameters that can be used to disable vehicle safety checks when changing lanes or speed. This may be useful when directing vehicles to make unsafe movements as these checks are enabled in SUMO by default.
   • If 'location_only' is set to True and a set of locations has been given, vehicles are only affected when in these locations. ie. vehicle effects from impacted vehicles are immediately removed once they leave the impacted area.
   • If 'force_end' is set to True, vehicles impacted by the event immediately have any effects removed at the scheduled end of the event. This overrides 'effect_duration' for individual vehicles and ensures all event effects stop at the end of the event.

A 'r_effects' parameter can also be used for both vehicle and edge effects. If set to true, all effects are made relative to the values at the start of the event. For example, setting r_effects=True and having a vehicle action max_acceleration=0.5 will reduce each vehicle's maximum acceleration by 50% from their individual baselines.

Tip

Both vehicle and edge/lane effects can be used during the same scheduled event.

An example of a scheduled event with edge effects is shown below. Here, 'lane_1' and 'lane_2' are closed to all vehicles between 200-400s.

bn_parameters = {"bottleneck":
                    {"start_time": 200,
                     "end_time": 450,
                     "edges":
                         {"edge_ids": ["lane_1", "lane_2"]
                          "actions":
                              {"disallowed": ["passenger","trailer","motorcycle","delivery"]},
                         }
                    }
                }

my_sim.add_events(bn_parameters)

Warning

When suddenly closing edges or lanes like this, vehicles may get trapped until permissions are changed back. This is expected as closing lanes also closes outgoing connections from the lane, meaning that vehicles cannot leave.

An example of a scheduled event with vehicle effects is shown below with a possible reaction to the bottleneck. Here, vehicles on nearby edges 'edge_1', 'edge_2' and 'edge_3' have their maximum speed changed to 40kmph for 100s, with 100% probability. These affected vehicles are coloured red.

rp_parameters = {"bottleneck_reaction":
                    {"start_time": 210,
                     "end_time": 500,
                     "vehicles":
                        {"locations": ["edge_1", "edge_2", "edge_3"],
                         "actions": {"max_speed": 40}
                         "effect_duration": 100,
                         "effect_probability": 1,
                         "remove_affected_vehicles": False,
                         "speed_safety_checks": False,
                         "lc_safety_checks": False,
                         "highlight": "#FF0000"
                        }
                    }
                }

my_sim.add_events(rp_parameters)

Event parameters are stored in the sim_data dictionary under 'data/events/{status}/{event_id}'. The status can either be 'scheduled', 'active' or 'completed'.

Dynamic Incidents

Incidents on the network can be dynamically simulated using the Simulation.cause_incident() function. This creates an event that starts in the next simulation step, where a set of vehicles stop in the road for a set duration. After the incident, these vehicles are removed. Dynamically causing incidents may be useful when training or evaluating incident-responsive traffic management systems.

The only required parameter is duration, denoting the duration of the incident in seconds. Otherwise, the vehicles chosen can be either specified by the user or completely random. Below is an example of an incident lasting 100s that involves two specific vehicles, 'car_1', 'lorry_1'. By default, the edges that the vehicles are on have their speed limits reduced to 15kmph (or 10mph) to simulate vehicles driving cautiously around the incident. This can be disabled by setting edge_speed to None.

my_sim.cause_incident(duration=100, vehicle_ids=["car_1", "lorry_1"])

For random incidents, it is still required to set the location through the geometry_ids parameter. This can be a list of edge/lane IDs or single ID. Vehicles in this location(s) are then randomly selected to be involved in the incident. n_vehicles denotes how many vehicles should be included. vehicle_separation is a float [0-1] that denotes how far apart the randomly selected vehicles should be, with 0 being close. Note that if there not enough vehicles on the selected edges, the surrounding edges are searched, meaning the incident may spread across many distant edges with high vehicle_separation. highlight_vehicles is a boolean that denotes whether to highlight involved vehicles with a circle around them.

Warning

With a high n_vehicles value, the algorithm may not be able to find enough vehicles, particularly with a high vehicle_separation. If assert_n_vehicles is set to True, an error will be thrown when this is the case, otherwise, the simulation will continue and cause_incidents() will return False.

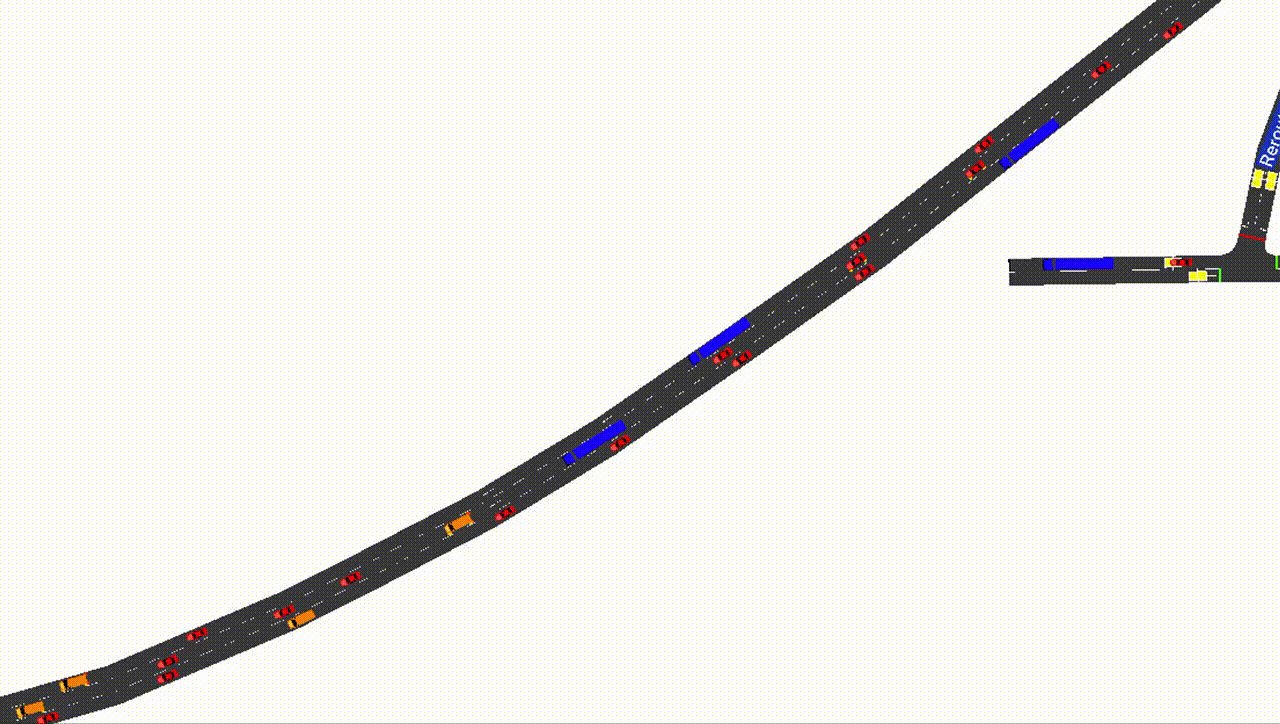

Below is an example of a dynamic incident. Here, 4 cars on edges 'edge_1' and 'edge_2' are stopped on the road for 100s, whilst the edges have their speed reduced to 20kmph. Each incident is added to the simulation as an event, meaning it will show in saved data and on plots as an event. By default, the incident will be defined a unique ID 'incident_[x]', however, an ID can be assigned manually as below.

success = my_sim.cause_incident(duration=100,
                                geometry_ids=["edge_1", "edge_2"],
                                n_vehicles=4,
                                vehicle_separation=0,
                                assert_n_vehicles=False,
                                edge_speed=20,
                                highlight_vehicles=True,
                                incident_id="pileup"
                               )

Warning

At the end of the incident, the vehicles are removed from the simulation which causes a SUMO error to be printed to the console, an example of which is shown below. This has no impacts on the simulation and can be safely ignored.

Error: Answered with error to command 0xa4: Vehicle 'vehicle_0' is not known.
Error! Vehicle 'vehicle_0' is not known.

Interacting with Events

There are several functions designed for interacting with or querying events. Firstly, Simulation.get_event_ids() and Simulation.event_exists() can be used to fetch all event IDs (optionally only those with a given status) and query whether an event exists to return its current status, respectively. Otherwise, Simulation.get_event() will return a specific Event object according to its ID.

An event can be terminated before its scheduled end using either Simulation.remove_events() and Event.terminate(). If the event is currently active, all of its effects are immediately removed. If the event is scheduled, but has not started, the event is simply deleted and will not occur.

Simulating Weather

Both network-wide and localised weather effects can be simulated using the Simulation.add_weather() function. These effects start in the following time step and are then active for a given duration, either effecting all vehicles in the network if no location is given, or it will only effect vehicles on given edges/lanes. An example of Simulation.add_weather() is shown below. Vehicle effects are immediately removed if a vehicle leaves the affected area or the weather event ends. Simulation.get_active_weather() can be used to fetch the IDs of any active weather events.

# Add network-wide weather effects lasting 100 seconds.
my_sim.add_weather(duration=100)

# Add weather effects to 'edge_1', 'edge_2' and 'lane_1'
my_sim.add_weather(duration=100, locations=['edge_1', 'edge_2', 'lane_1'])

# Returns ("weather_1", "weather_2")
weather_ids = my_sim.get_active_weather()

There are 5 parameters changed for vehicles in an area with active weather effects, as outlined in the table below for a default strength of 0.2. Note that some are increased whilst others are decreased. Firstly, the desired minimum time headway ($\tau$) is increased, growing the space between vehicles, and driver imperfection ($\sigma$) is increased, which adds noise to drivers' acceleration/deceleration. Acceleration and deceleration are reduced according to the same amount, both only affecting their maximum values. Vehicle speed factor is also reduced, which impacts how fast drivers travel in relation to the speed limit.

SUMO Parameter	Unit	add_weather() Parameter	Default Value	Weather Impacted Value
Desired minimum time headway	seconds	headway_increase	1.0	1.2
Driver imperfection	-	imperfection_increase	0.5	0.6
Maximum vehicle acceleration	m/s2	acceleration_reduction	2.60	2.08
Maximum vehicle deceleration	m/s2	acceleration_reduction	4.50	3.6
Vehicle speed factor	-	speed_f_reduction	1.0	0.8

The strength of weather effects can either be changed using the strength parameter, or by individually changing [headway|imperfection]_increase and [speed_f|acceleration]_reduction. strength, which defaults to 0.2, is used as the default for each of these 4 other parameters if not given. In the below example, desired headway and imperfection are increased by 30%, whilst acceleration and speed factor are both reduced by 10% (defined using strength).

my_sim.add_weather(duration=100,
                   strength=0.1,
                   headway_increase=0.3,
                   imperfection_increase=0.3)

Each weather event is given an ID ("weather_[n]", where n is the number of the weather event), which can be used to stop any effects before its scheduled end and for plotting. The ID can also be set manually using the weather_id parameter. To end the weather event early, use Simulation.remove_events(weather_id). When plotting, the ID can be used with the show_events parameter to show the duration of the weather event. If the ID contains the word 'weather', the event will show in green to distinguish them from regular events.

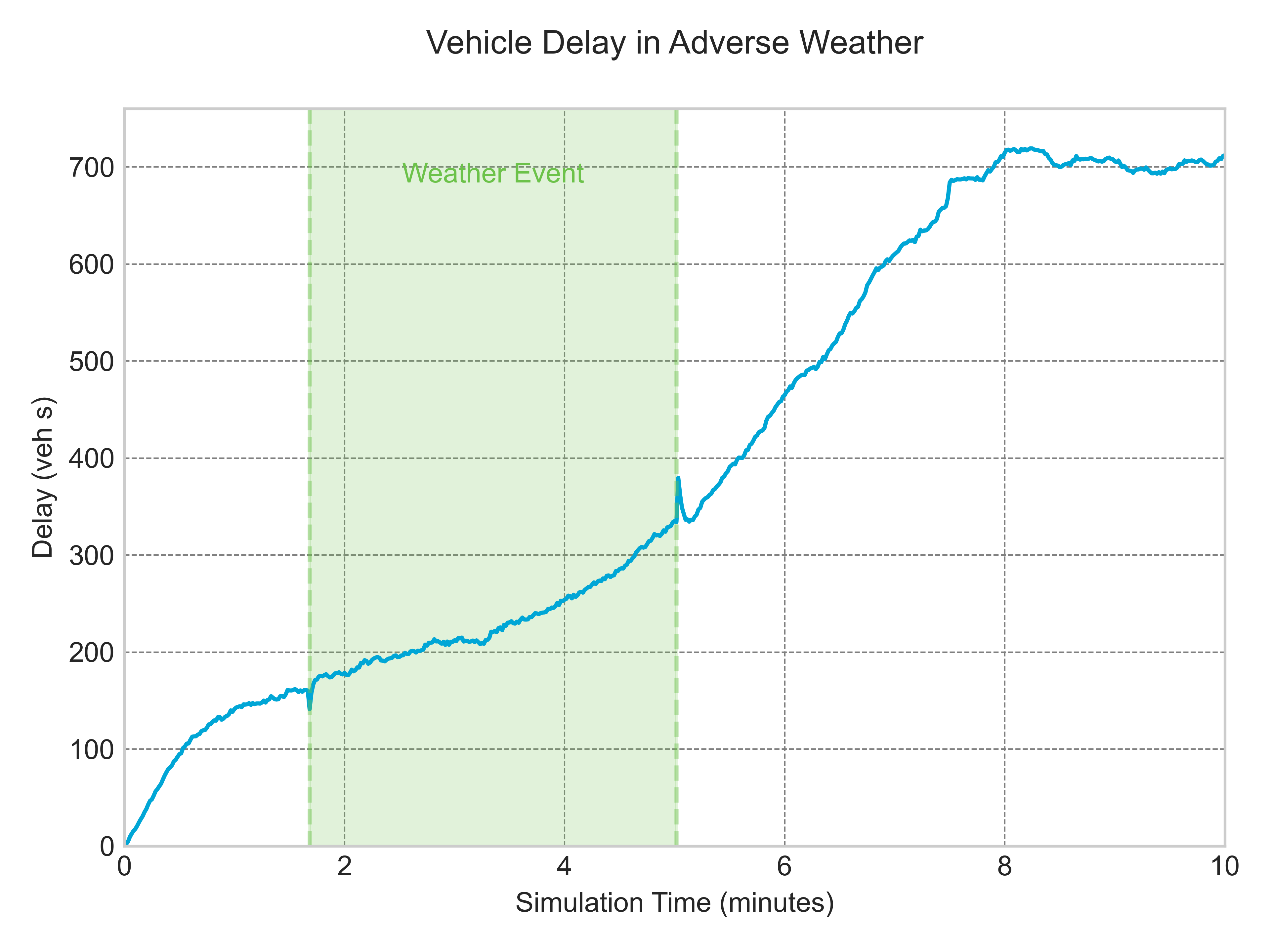

plt.plot_vehicle_data("delay", show_events="Weather Event", fig_title="Vehicle Delay in Adverse Weather")
