Examples
Basic Scenario

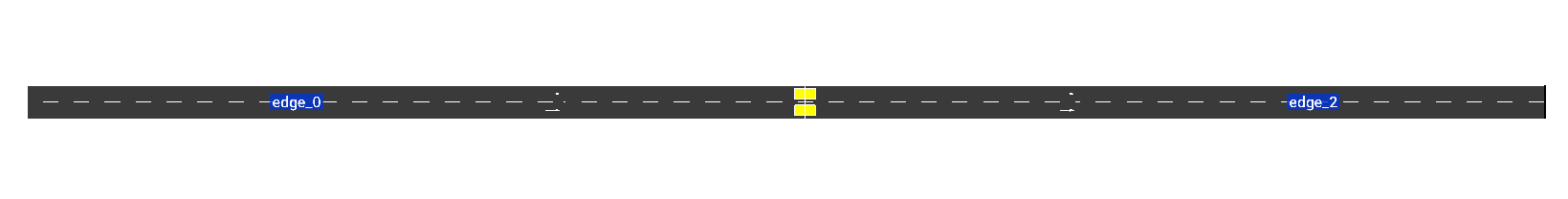

Below is a basic example that can be used to check that SUMO and TUD-SUMO are installed and run correctly. The network used is shown above, and is a simple ~300m stretch of road with a constant demand of 1800veh/hr.
This example can be downloaded from the basic_example file on GitHub at: DAIMoNDLab/tud-sumo-examples
from tud_sumo.simulation import Simulation
if __name__ == "__main__":
# Initialise the simulation object.
my_sim = Simulation(scenario_name="basic_scenario",
scenario_desc="TUD-SUMO integrity check.")
# Start the simulation, defining the sumo config files.
my_sim.start("basic_scenario/sumo_config.sumocfg",
gui=True,
seed=1)
# Run through the simulation for 1000 steps.
my_sim.step_through(n_steps=1000)
# End the simulation.
my_sim.end()
# Save the simulation data & print a summary, which is also saved.
my_sim.save_data("example_data.json")
my_sim.print_summary(save_file="example_summary.txt")
A20 Scenario

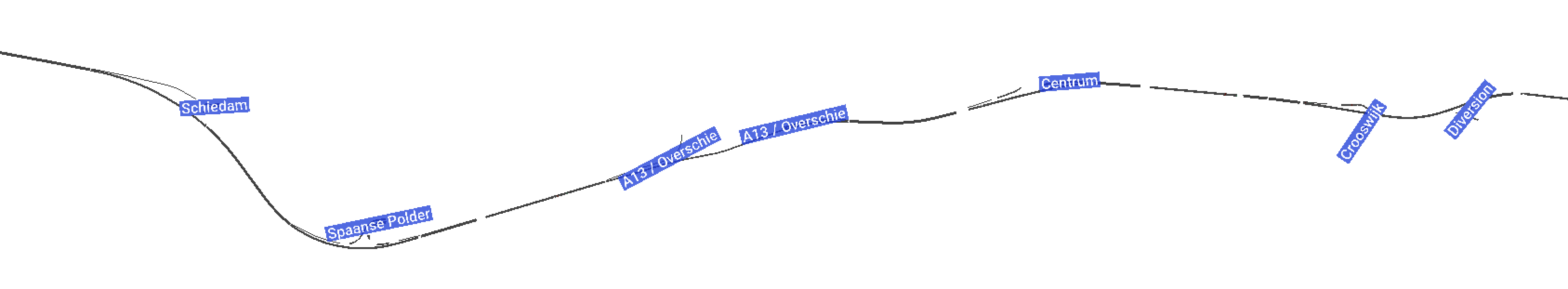

Below, the northern section of the motorway ringroad around Rotterdam, the A20 between Schiedam and the Kralingse Bos, is simulated. This scenario aims to demonstrate the full functionality of TUD-SUMO, with multiple ramp meters, variable speed limit and route guidance controllers, as well as several different events and interactions. The layout of the network itself is shown above.
This example can be downloaded from the a20_example file on GitHub at: DAIMoNDLab/tud-sumo-examples
from random import randint, seed
import sys
from tud_sumo.simulation import Simulation
from tud_sumo.plot import Plotter
if __name__ == "__main__":
# Initialise the simulation object.
my_sim = Simulation(scenario_name="A20_ITCS", scenario_desc="Example traffic controllers, with 2 ramp meters, 1 VSL controller and 1 route guidance controller.")
sim_seed = "1" if "-seed" not in sys.argv[:-1] else sys.argv[sys.argv.index("-seed")+1]
seed(int(sim_seed))
# Start the simulation, defining the sumo config files.
my_sim.start("example_scenario/a20.sumocfg", get_individual_vehicle_data=False, gui="-gui" in sys.argv,
seed=sim_seed, units="metric") # Units can either be metric (km,kmph)/imperial (mi,mph)/UK (km,mph). All data collected is in these units.
# Add demand from a '.csv' file.
# my_sim.load_demand("example_scenario/demand.csv")
# Add a tracked junction to the intersection with ID "utsc", which will track signal phases/times.
my_sim.add_tracked_junctions({"utsc": {"flow_params": {"inflow_detectors": ["utsc_n_in_1", "utsc_n_in_2", "utsc_w_in", "utsc_e_in"],
"outflow_detectors": ["utsc_w_out", "utsc_e_out"],
"vehicle_types": ["cars", "lorries", "motorcycles", "vans"]}}})
# Set traffic signal phases. The junc_phases dict can be used for multiple junctions.
my_sim.set_phases({"utsc": {"phases": ["GGrr", "yyrr", "rrGG", "rryy"], "times": [27, 3, 17, 3]}})
# Add a ramp meter to the junction with ID "crooswijk_meter". The junc_params dict can be used to
# define meter specifc parameters (min/max rate, spillback tracking or queue detectors) and flow specific
# parameters (inflow/outflow detectors used to calculate in/out flow).
my_sim.add_tracked_junctions({"crooswijk_meter": {'meter_params': {'min_rate': 200, 'max_rate': 2000, 'queue_detector': "cw_ramp_queue"},
'flow_params': {'inflow_detectors': ["cw_ramp_inflow", "cw_rm_upstream"], 'outflow_detectors': ["cw_rm_downstream"]}},
"a13_meter": {'meter_params': {'min_rate': 200, 'max_rate': 2000, 'queue_detector': "a13_ramp_queue"},
'flow_params': {'inflow_detectors': ["a13_ramp_inflow", "a13_rm_upstream"], 'outflow_detectors': ["a13_rm_downstream"]}}})
# Add Route Guidance (RG) & Variable Speed Limit (VSL) controllers. RG controllers need a detector or
# edge that will act as the redirection point and a target edge/route ID to redirect drivers to. It is
# also possible to define a diversion percent to randomly divert a certain percent of drivers, and a
# highlight colour for the SUMO gui, which will highlight affected drivers. VSL controllers only need
# to have a list of lanes/edges where they will operate.
my_sim.add_controllers({"rerouter": {"type": "RG", "detector_ids": ["rerouter_2"], "new_destination": "urban_out_w", "diversion_pct": 1, "highlight": "00FF00"},
"vsl": {"type": "VSL", "geometry_ids": ["126729982", "126730069", "126730059"]}})
# Add tracked edges. This will track some basic information, such as average speed etc, but can also
# be used to create space-time diagrams as individual vehicle speeds and positions are tracked.
tracked_edges = ["126730026", "1191885773", "1191885771", "126730171", "1191885772", "948542172", "70944365", "308977078", "1192621075"]
my_sim.add_tracked_edges(tracked_edges)
# Add scheduled events from a JSON file (can be dictionary). Use the format as in example_incident.json
my_sim.add_events("example_scenario/example_incident.json")
# Add a new route that vehicles can be assigned to.
my_sim.add_route(("urban_in_e", "urban_out_w"), "new_route")
# These individual functions above can be replaced as below, where the 'parameters.json' file contains
# a dictionary of all necessary parameters (under 'edges', 'junctions', 'phases', 'controllers' and 'events')
# my_sim.load_objects("parameters.json")
# This file can either be created manually, or by saving objects in previous simulations. This is done
# using the save_objects function as below.
my_sim.save_objects("objects.json")
# Add a function that is called on each new vehicle in the simulation. Simulation parameters are; curr_step,
# vehicle_id, route_id, vehicle_type, departure, origin, destination. These values are filled automatically.
# For other parameters, use a parameters dictionary as below. Use add_vehicle_out_funcs() for functions
# called when vehicles exit the simulation (only with vehicle_id and/or curr_step). Vehicle in/out functions
# can be removed using remove_vehicle_[in/out]_functions().
vehicle_ids, new_veh_idx = [], 0
def add_to_vehicle_arr(simulation, vehicle_id, arr):
"""
Append vehicle ID and initial speed to an array.
"""
veh_speed = simulation.get_vehicle_vals(vehicle_id, "speed")
arr.append((vehicle_id, veh_speed))
my_sim.add_vehicle_in_functions(add_to_vehicle_arr, parameters={"arr": vehicle_ids})
n, sim_dur, warmup = 1, 500 / my_sim.step_length, 0 / my_sim.step_length
if warmup > 0:
my_sim.step_through(n_steps=warmup, pbar_max_steps=sim_dur+warmup, keep_data=False)
while my_sim.curr_step < sim_dur + warmup:
# Set ramp metering rate.
if my_sim.curr_step % 50 / my_sim.step_length == 0:
my_sim.set_tl_metering_rate(rm_id="crooswijk_meter", metering_rate=randint(1200, 2000))
my_sim.set_tl_metering_rate(rm_id="a13_meter", metering_rate=randint(1200, 2000))
# Step through n seconds.
my_sim.step_through(n_seconds=n, pbar_max_steps=sim_dur+warmup)
# Add new vehicles going from "urban_in_e" to "urban_out_w" (using previously defined route)
if my_sim.curr_step % 50 / my_sim.step_length == 0:
my_sim.add_vehicle(vehicle_id="lorry_"+str(new_veh_idx), vehicle_type="lorries", routing="new_route", origin_lane="first")
my_sim.add_vehicle(vehicle_id="car_"+str(new_veh_idx), vehicle_type="cars", routing="new_route")
new_veh_idx += 1
if my_sim.curr_step == 100 / my_sim.step_length:
my_sim.cause_incident(100, n_vehicles=2, edge_speed=5)
if my_sim.curr_step == 250 / my_sim.step_length:
# Activate controllers & update UTSC phases.
my_sim.controllers["rerouter"].activate()
my_sim.controllers["vsl"].set_speed_limit(60)
my_sim.set_phases({"utsc": {"phases": ["GGrr", "yyrr", "rrGG", "rryy"], "times": [37, 3, 7, 3]}}, overwrite=False)
if my_sim.curr_step == 400 / my_sim.step_length:
my_sim.controllers["vsl"].set_speed_limit(40)
# Deactivate controllers.
if my_sim.curr_step == 450 / my_sim.step_length:
my_sim.controllers["rerouter"].deactivate()
my_sim.controllers["vsl"].deactivate()
# End the simulation.
my_sim.end()
# Save the simulation data & print a summary, which is also saved.
my_sim.save_data("example_data.json")
my_sim.save_data("example_data.pkl")
my_sim.print_summary(save_file="example_summary.txt")
